This set includes the complete collection of electrical diagrams from the 914EV Conversion Guide, professionally printed at large 24 × 36 inch scale on 42 lb. premium matte stock in high-resolution for maximum clarity and legibility. These diagrams are intended for use as wall-mounted shop references during planning, installation, and troubleshooting.
All diagrams are produced at full detail to preserve fine labeling, routing, and connection information that benefits from large-format viewing. The set is offered only as a complete collection and is not sold as individual prints.
This reference set is designed to complement the 914EV Conversion Guide and assumes familiarity with the systems and terminology documented therein.
Diagrams are shipped together in a sturdy cardboard tube. Included are the images listed below:

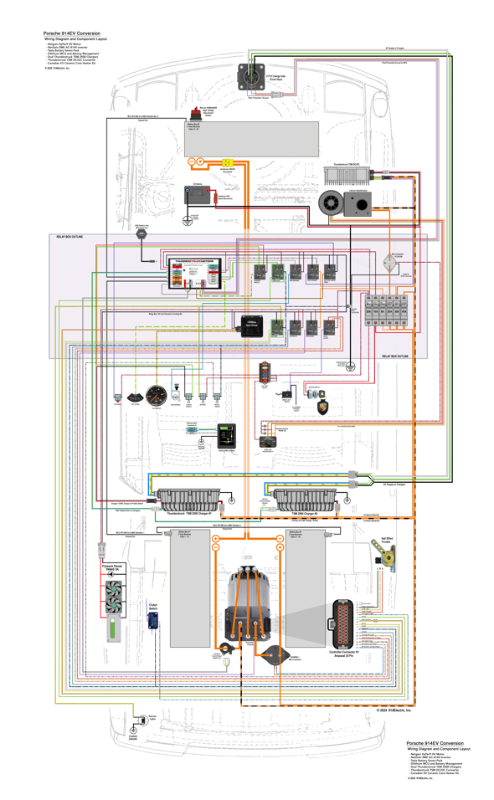

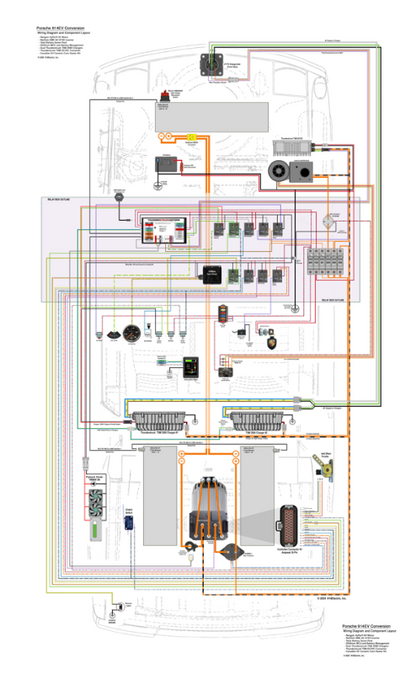

Main Wiring Diagram and Component Layout

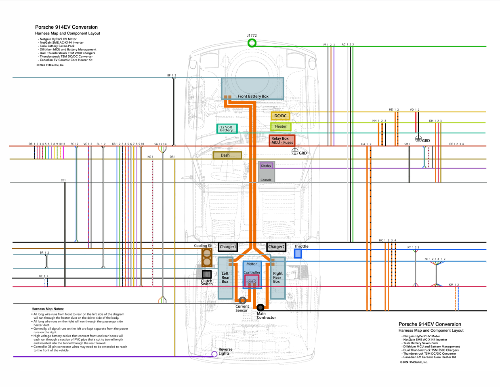

Main Wiring Harness Map (Index exists in Conversion Guide)

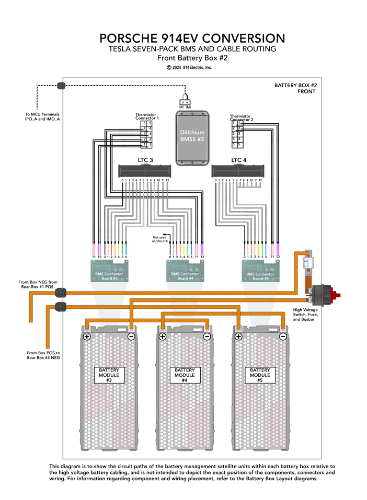

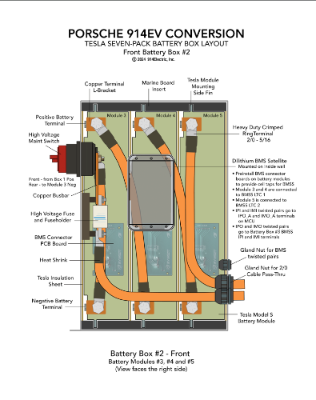

Front Battery Box BMS Connections and Cable Layout

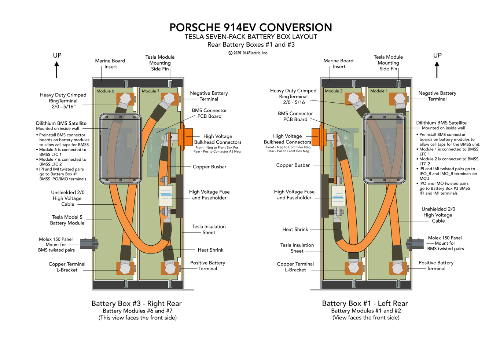

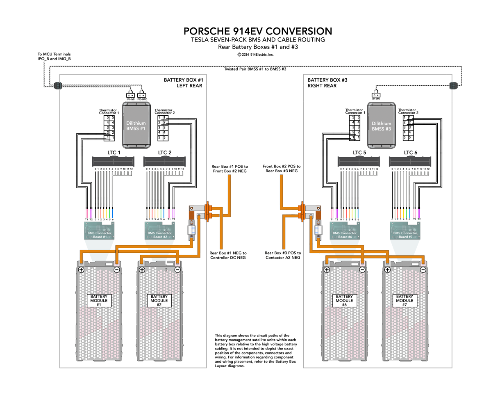

Rear Battery Boxes BMS Connections and Cable Layout
